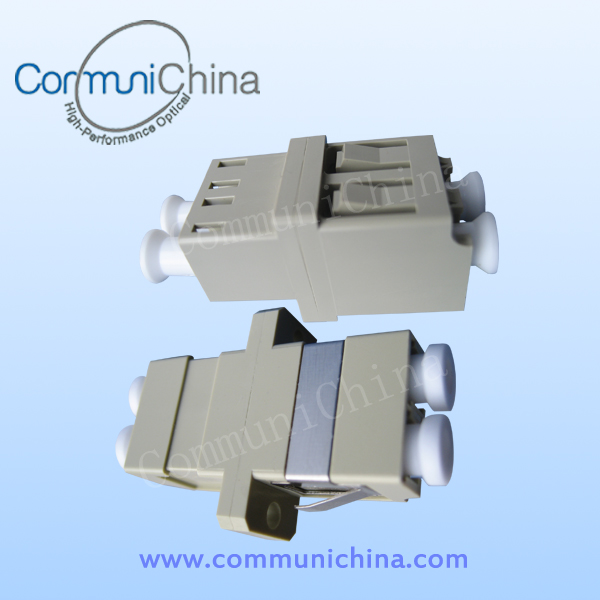

LC-MM-DX
Description
CommuniChina offers a wide range of high quality adapters for both single-mode and multi-mode applications,
which have high precision alignment sleeves for reliability and improved reconnectability.
LC series housing is available in different colors with options for flange of flangeless body, metal clips or inbuilt clips.
Features:
* Biege color
* Duplex
* Fully Zirconia Ceramic sleeves or Phosphor bronze sleeves
* NTT standard compatible
* Available without flanges or with flange for duplex, saving panel space
* LC high density for patch panel mount applications
* Meet JIS5974 and bellcore GR-910-CORE
* Compliant with IEC874-14 & IEC874-19
* All parts compliant with RoHS
Application:
* FTTP
* CATV; LAN & WAN
* Network; Broadband
*Telecommunication
Specification
|
Product |
LC Multimode Duplex Adapter |
|
|
Mode |
SM (Z. C) |
MM (Z. C or P. B) |
|
Insertion Loss |
≤ 0.1dB |
≤ 0.15dB |
|
Mating Durability(1000times) |
Additional Loss≤ 0.1dB, Return Loss Variability 5dB |
|
|
Temperature Stability(-40~85 centigrade degree) |
Additional Loss≤ 0.2dB, Return Loss Variability 5dB |
|
|
Receptacle Retention force |
1N~2.5N |
2N~5.9N |
|
Operating Temperature |
-40~+85 centigrade degree |
|
|
Storage Temperature |
-40~+85 centigrade degree |
|
