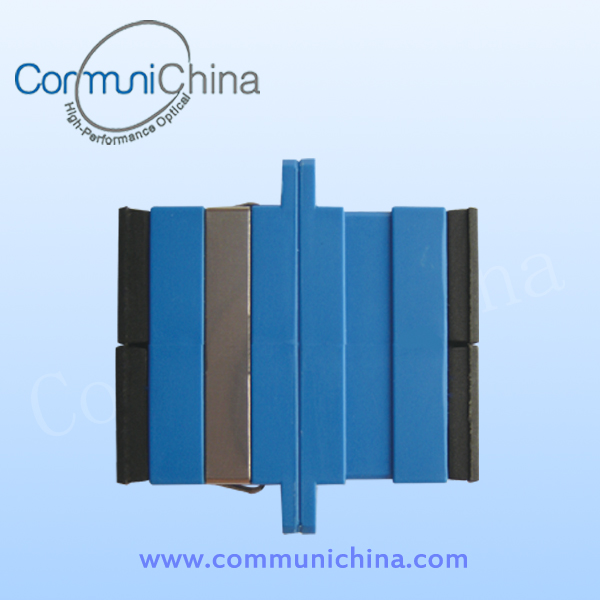

SC-SM-DX ADAPTOR

Description:



CommuniChina offers a wide range of high quality adapters for both single-mode and multi-mode applications,

which have high precision alignment sleeves for reliability and improved reconnectability.

SC series housing is available in different colours with options for flange of flangeless body, metal clips or inbuilt clips.



Features:

* Blue color

* Duplex

* Fully Zirconia Ceramic sleeves or Phosphor bronze sleeves

* NTT standard compatible

* Available without flanges or with flange for duplex, saving panel space

* SC2 8Port high density for patch panel mount applications

* Meet JIS5974 and bellcore GR-910-CORE

* Compliant with IEC874-14 & IEC874-19

* All parts compliant with RoHS



Application:

* FTTP

* CATV; LAN & WAN

* Network; Broadband

*Telecommunication



Specification:





Product

SC Singlemode Duplex Adaptor

Mode

SM (Z. C)

MM (Z. C or P. B)

Insertion Loss

≤ 0.1dB

≤ 0.15dB

Mating Durability(1000times)

Additional Loss≤ 0.1dB, Return Loss Variability 5dB

Temperature Stability(-40~85 centigrade degree)

Additional Loss≤ 0.2dB, Return Loss Variability 5dB

Receptacle Retention force

1N~2.5N

2N~5.9N

Operating Temperature

-40~+85 centigrade degree

Storage Temperature

-40~+85 centigrade degree
