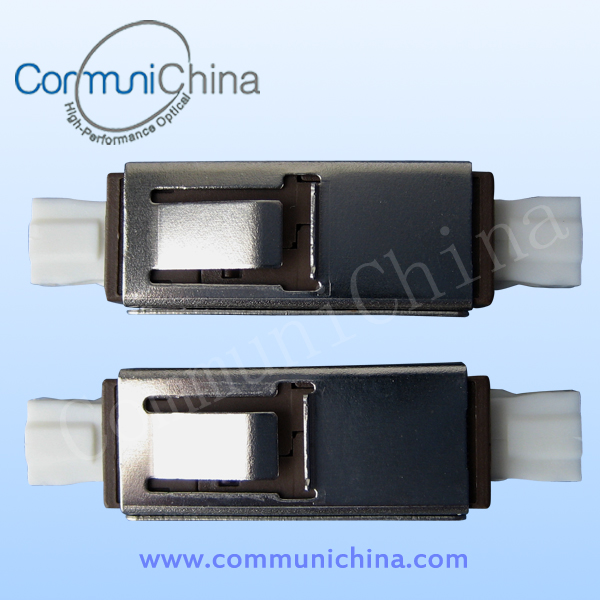

MU-ADAPTOR
Description
CommuniChina offers a wide range of high quality adaptors for both single-mode and multi-mode applications,
which have high precision alignment sleeves for reliability and improved reconnectability.
Features:
* Stainless metal clip
* Simplex
* Fully Zirconia Ceramic sleeves
* NTT standard compatible
* E2000 high density for patch panel mount applications
* Meet JIS5974 and bellcore GR-910-CORE
* Compliant with IEC874-14 & IEC874-19
* All parts compliant with RoHS
Application:
* FTTP
* CATV; LAN & WAN
* Network; Broadband
*Telecommunication
Specification
|
Product |
Mu Simplex Adaptor |
|
|
Mode |
SM (Z. C) |
MM (Z. C or P. B) |
|
Insertion Loss |
≤ 0.1dB |
≤ 0.15dB |
|
Mating Durability(1000times) |
Additional Loss≤ 0.1dB, Return Loss Variability 5dB |
|
|
Temperature Stability(-40~85 centigrade degree) |
Additional Loss≤ 0.2dB, Return Loss Variability 5dB |
|
|
Receptacle Retention force |
1N~2.5N |
2N~5.9N |
|
Operating Temperature |
-40~+85 centigrade degree |
|
|
Storage Temperature |
-40~+85 centigrade degree |
|
