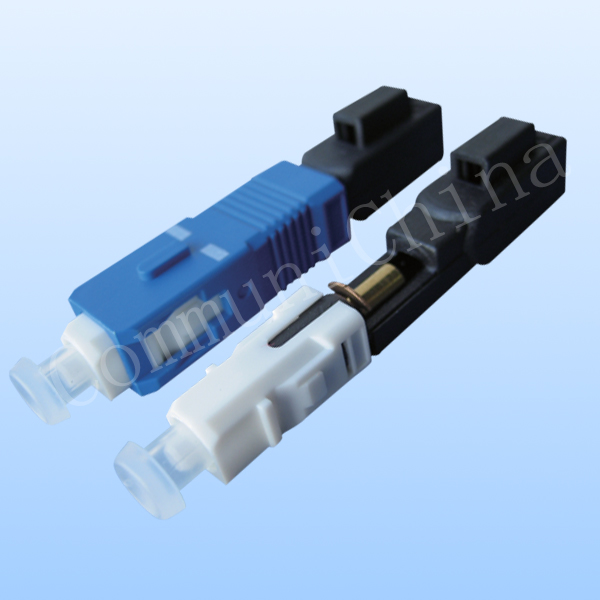

FAC-SM-SCD01 CONNECTOR
Product Description:
Field assembly connector(FAC), fast assembly connector, also called quick assembly connector, is a pre-polished, pre-assembled connector compatible with the standard LC/FC/SC connector. In place of epoxy, an internal mechanical grip gently but effectively holds the fiber in place and can be installed within two minutes. Without polishing, adhesives, or heating, this kind of connector makes field installation quickly and easily, eliminating the need for epoxy curing and hand polishing at the work site. It is designed for optical fiber termination especially in FTTH projects, directly in the end user site. It comes with assembly tool kits, It is easy and eminently portable. It is easy and eminently portable, suitable for patch panel, terminal box, wall box…… All Communichina’s FAC are compliant with Rohs, IEC 61754-4, GR-1081, GR-326-CORE standard.
Features:
1. Fully Zirconia Ceramic Ferrule
2. Portable, Field installable
3. Cost effective
4. Fast, easy, accurate
5. Installation less than 2 minutes
6. FTTH project usable
7. Reliable and superior optical performance
8. Cable Tensile test complies with Telcordia GR-326-CORE
Application:
1. Distribution frames
2. Field word
3. Patch panels
4. FTTH Outlets
5. Maintenance or emergency restoration of fiber networks
Specification:
|
Applicable for |
Φ0.25~φ0.9mm, φ 2mm, φ 3mm cable |
|
Optical fiber diameter |
125μ m ( G.652 G.657) |
|
Tight buffer diameter (μm) |
900μ m |
|
Fiber mode |
Single-mode, multi-mode |
|
Installation time |
within 120 second |
|
Insert loss |
≤ 0.2dB(1310nm 1550nm) |
|
Return loss |
≥-55dB, ≥60db(apc) |
|
Fastening strength of naked fiber |
5 N |
|
Fastening strength of naked fiber holder |
10 N |
|
Tensile strength |
50 N |
|
Using temperature |
-40~+85 ℃ |
|
On-line tensile strength (20 N) |
IL ≤ 0.2dB RL ≤ 5dB |
|
Mechanical durability (1000 times) |
IL ≤ 0.2dB RL ≤ 5dB |
|
Drop-off test (drop-off height 4m, once per direction, totally 3 times) |
IL ≤ 0.2dB RL ≤ 5dB |
|
Ferrule Material (UPC,APC) |
Fully Zirconia Ceramic Ferrule |
