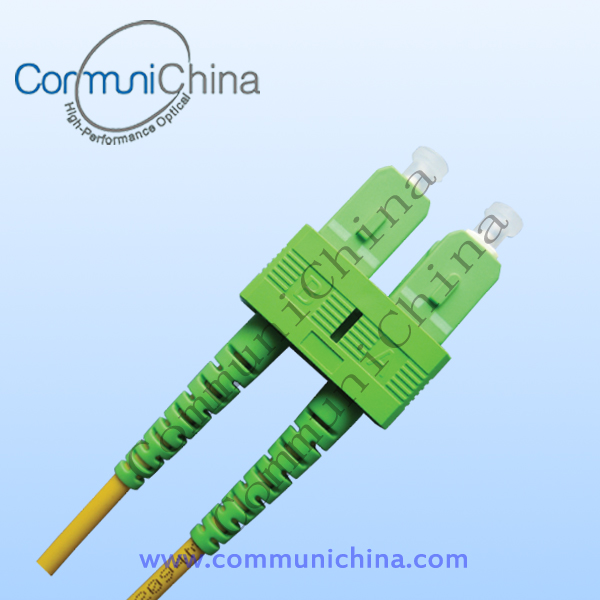

SC-APC Patch Cord

Description:
CommuniChina can supply you a wide range of terminating fiber optic products for various applications. The featured products are manufactured using high quality components and the most sophisticated mechanical polishing techniques. Communichina’s patch cords are available in any a variety of connection configurations including standard and small form factor connectors that is SC, LC, FC, ST, MTRJ, MU, MPO, and E2000; PC, UPC, APC 8 degree for single mode patch cord, and SC, LC, FC, ST, MTRJ and MPO for the multi mode patch cord.

Features:

* Telcordia GR-326-CORE Compliant

* RoHs, LSZH compliant

* IEC standard compatible

* Low insertion loss and back reflection

* High consistent quality and short lead time

* Standard/small form factor connector styles

* Available in customized colors and package

* Precision pre-grinding Zirconia Ceramic Ferrules

 Application:

* FTTP

* CATV

* LAN & WAN

* Network

* Broadband

* Telecommunication

 Specification:



Item

Mode Type

PC

UPC

APC

Insertion Loss

SM

≤ 0.25dB

≤ 0.20dB

≤ 0.20dB

MM

≤ 0.30dB

≤ 0.20dB

----

Return Loss

SM

≥ 50dB

≥ 55dB

≥ 65dB

MM

≥ 35dB

≥ 35dB

----

Durability

1000 times

Repetition Test

Additional Loss≤ 0.1dB, Return Loss Variability 5dB

Temperature Stability (-40~85℃)

Additional Loss≤ 0.2dB, Return Loss Variability 5dB

Operating Temperature

-40~+80 ℃

Storage Temperature

-40~+85 ℃

Fiber Type

SM G652.D; G657.A,B; OM1, OM2,OM3,OM4……

Cable Diameter

0.9mm, 2.0mm, 3.0mm ……

Material

PVC/LSZH Jacket, Hytrel aramid yarn, Zirconia Ceramic Ferrule, Corning fiber
