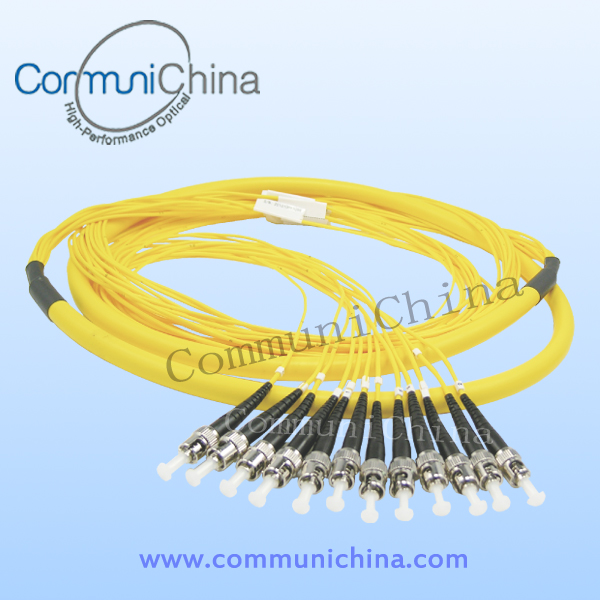

ST-SM Pigtail

Description:

Communichina pigtails are manufactured using high quality components and the most sophisticated mechanical polishing techniques. The Singlemode pigtails are used in Telcom, Datacom Networks and also used for high speed metropolitan and access network. The Multimode pigtails are use to connect high speed networks like Gigabit Ethernet, Fast Ethernet and Ethernet. The pigtail buffer conforms to IEC,EIA TIA and Telecordia standards. The pigtails are terminated with standard CommuniChina connector which gives optimun optical performance.

 Features:

 ★PC,UPC and APC connectors

★SC,LC,FC,ST,E2000 connectors

★900um tight buffer or easy strip

★Low smoke zero halogen(LSZH) buffer

★Low insertion loss and back reflection

★High consistent quality and short lead time

★Available in standard and customized packing

★Available in standard 12 coulurs as per IEC 60304

★Multimode fiber conforms to ITU-G651, TIA/EIA 492AAAA

★Singlemode fiber conforms to ITU-G652.D, TIA/EIA 492AAAA

★Different connector performance range for specific application

Application:

 ATM,SONET and WDM

★Telecom and datacom application

★Easy strip pigtails for on site installation

★Networks including Ethernet, Fast Ethernet and GBE

★Patch panels,wall boxes, ODFs and splice cassettes

★Suitable for repeated handling in patch panels and racks

★Supports high speed multi channel video, data and vioce

  services in metropolitan and access network

 Specification:



                                      Connector

optical performance

singlemode

multimode

Insertion loss (Typ)

0.25dB

0.3dB

Ave/Master*

0.18dB

0.15dB

Ave/Random*

0.18dB

0.20dB

Ruturn loss

50/60dB

--

                                    Buffer

Characteristics

simplex

simplex

Crush

500N/100mm

500N/100mm

Operating Temperature

-20 to +60 ℃

-20 to +60 ℃

Storage Temperature

-40 to +70 ℃

-40 to +70 ℃

Nominal buffer Diameter

900+50um

900+50um

Max Tensile Load 6N 6N

Minimum bend radius(installed)

30mm

30mm

Primary coating colour

yellow/…

orange/aqua/…

                                              Fiber

Characteristics



Attenuation(dB)

0.38@1310 / 0.25@1550nm

Chromatic Dispersion(ps/nm x km)

3.0@1310 / 18.0@1550nm

Polarization Mode Dispersion(ps/km)

< 0.2dB
