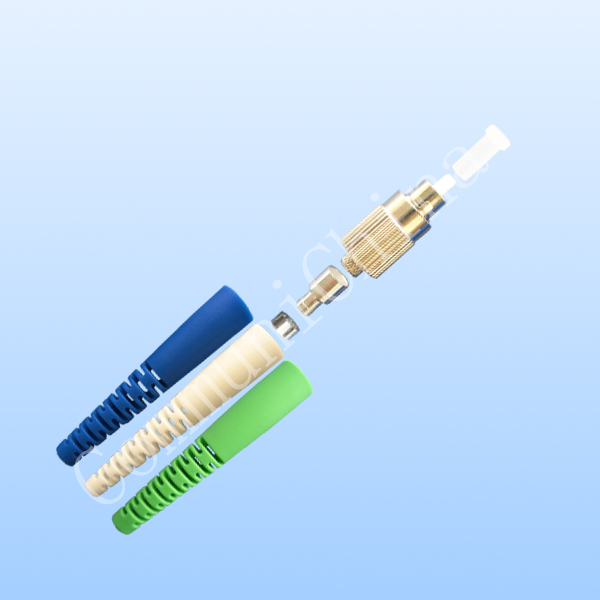

FC CONNECTOR SERIES
Description：
CommuniChina can supply a wide range of fiber optic connectors for various applications.
FC series connectors are the most popular type in the Network and Telecommunication.
Features:
* ANSI \ IEC \ TIA/EIA \ NTT and JIS standard compatible
* UL-rated plastic housing and boot in a variety of colors with 0.9mm, 2.0mm or 3.0mm
* Multi-piece type or one-piece type is available
* Available in customied colours and customied packaging
* Precision mechanical dimensions
* Low insertion loss and back reflection
* Fully Zirconia Ceramic Ferrule UPC or 8 degree APC; diameter125~127um high concentricity
* Complies with IEC 61754-4,IEC 60784-14 and Tia 604-3
* Content RoHS claim
Application:
* Telecommunication
* CATV
* FTTP.
* LAN & WAN
* Network
* Broadband
Specification:
|
Item |
Parameter |
|
|
Single-Mode |
Multi-Mode |
|
|
Insertion Loss |
≤ 0.2dB |
|
|
Durability (1000 Matings) |
0.2dB Max. |
|
|
Operating Temperature |
-40~+80 centigrade degree |
|
|
Storage Temperature |
-40~+85 centigrade degree |
|
|
Fully Zirconia Ceramic Ferrule (UPC,APC) Remark: Ferrule Concentricity SM 1um; MM 1.4um Ferrule inner diameter tolerance +1/-0um Ferrule outer diameter tolerance +/-0.5 um |
||
