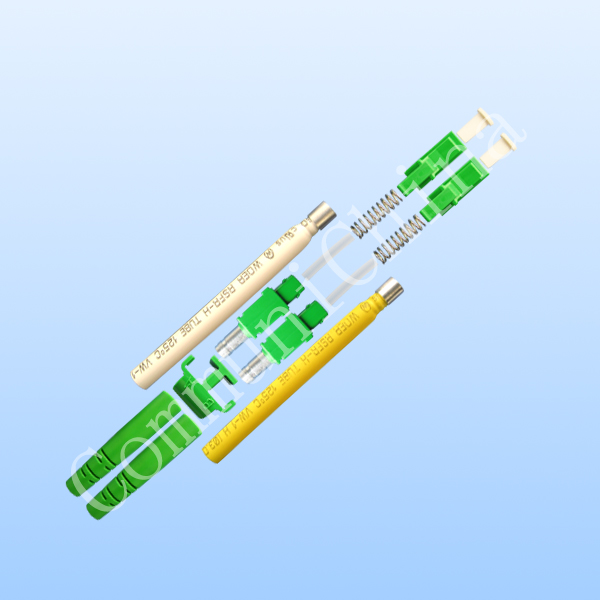

LC-APC-DX
Description:
CommuniChina can supply a wide range of fiber optic connectors for various applications.
LC series connectors are the most popular type in the Network and Telecommunication.
Features:
* Single-mode, APC Duplex
* ANSI \ IEC \ TIA/EIA \ NTT and JIS standard compatible
* UL-rated plastic housing and boot in a variety of colors with 0.9mm, 2.0mm or 3.0mm
* Multi-piece type or one-piece type is available
* Available in customied colours and customied packaging
* Precision mechanical dimensions
* Low insertion loss and back reflection
* Fully Zirconia Ceramic Ferrule UPC or 8 degree APC diameter125~127 um high concentricity
* Complies with IEC 61754-4,IEC 60784-14 and Tia 604-3
* Content RoHS claim
Application:
* FTTP
* CATV; LAN & WAN
* Network; Broadband
* Telecommunication
Specification:
|
Type |
SC duplex connector |
|
Mode |
Single-mode |
|
Insertion Loss |
≤0.2dB |
|
Durability (1000 Mating) |
≤0.2dB |
|
Operating Temperature |
-40~+80 centigrade degree |
|
Storage Temperature |
-40~+85 centigrade degree |
|
Fully Zirconia Ceramic Ferrule (UPC,APC) Remark: Ferrule Concentricity SM≤1um; MM≤1.4um Ferrule inner diameter tolerance +1/-0um Ferrule outer diameter tolerance +/-0.5um |
|
